Data Communication

DATA COMMUNICATION VCSEL

Feature

850nm Vertical-Cavity Surface-Emitting Laser

High reliability and uniformity, Low noise

Array configuration 1x4, 1x8, 1x12 available

Data rates from DC to 14Gbps/20Gbps/25Gbps NRZ/50Gbps PAM4

Applications

Data Center

HDMI

USB4 Type-C

Chip List
Product
10G25G25G 1×425G 1×8
Power(mW/emitter)3333
Voltage(V/emitter)2.22.22.22.2
Current(mA/emitter）7.57.57.57.5
Chip Design


Typical performance curve

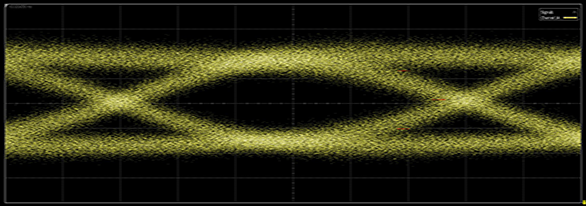

 25G Eye Diagram

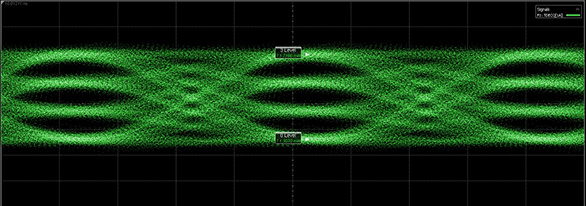

50G PAM4 Eye Diagram



*25G Eye Diagram and 50G PAM4 Eye Diagram of Data Communication at 25 ℃
